Steering Racks and Rack Repair Kits
Steering racks turn the rotation of your steering wheel into the side-to-side movement that points the front wheels, and Easy Life Markets sells complete rack and pinion assemblies and rack repair kits. If your steering knocks from the middle of the car, feels heavy, leaks fluid or has more free play than it should, the rack is one of the parts to check, and this page explains how to choose the right fix.
Our current range is small: a complete power steering rack and pinion for the 2014-2019 Toyota Corolla with inner tie rod ends already fitted, and a BMW rack repair kit with a thrust piece tool for many F-series models. We will add more vehicles over time. Each listing gives the vehicle, years and reference numbers, and the current price and availability are shown on each product page.
How a Rack and Pinion Works
Most modern cars use rack and pinion steering. The steering column ends in a small round gear, the pinion. The pinion meshes with a long straight bar cut with teeth, the rack. When you turn the wheel, the pinion rolls along the rack and slides it left or right inside a metal housing.
Each end of the rack connects to an inner tie rod. The inner rod links to an outer tie rod end, and that bolts to the steering knuckle. So the rack is the heart of the system. Everything you feel through the wheel passes through it.
Inside the housing, a spring-loaded thrust piece, sometimes called a yoke or slipper, presses the rack against the pinion. It removes slack between the gear teeth. Bushes support the rack at the far end of the housing, and rubber bellows boots at each end keep dirt and water out. On hydraulic systems, seals inside the housing hold pressurised fluid.
Types of Steering Racks
All steering racks share the same basic design, but the way they are assisted varies. Knowing which type your car has makes ordering easier.
Manual racks
Manual racks have no assistance. They are light and simple and are found on some older and smaller cars. Steering is heavier when parking but very direct at speed.
Hydraulic power steering racks
A belt-driven pump sends fluid under pressure to a valve on the pinion. The valve directs the fluid to one side of a piston on the rack, which helps push it. These racks have fluid line connections on the housing. Common faults are leaking seals, worn valves and noise from a tired pump.
Electric power steering racks
An electric motor provides assistance, either on the steering column or directly on the rack. There is no fluid. Rack-mounted units are usually sold as complete assemblies with the motor and control unit. After fitting, many need a calibration with a suitable scan tool.
Rack repair kits
Not every rack fault needs a new rack. A common problem on some cars is a worn thrust piece, which lets the rack move away from the pinion and produces a knock over bumps. A repair kit replaces that piece. Our BMW steering rack repair kit 32106891974 comes with a matching thrust piece tool. The supplier lists it for F20, F21, F22, F23, F30, F31, F34, F32, F33, F36, F48, F25 and F26 models.
Steering Racks in Our Current Range
| Product | Type | What it fixes | Included | Listed vehicles |
|---|---|---|---|---|

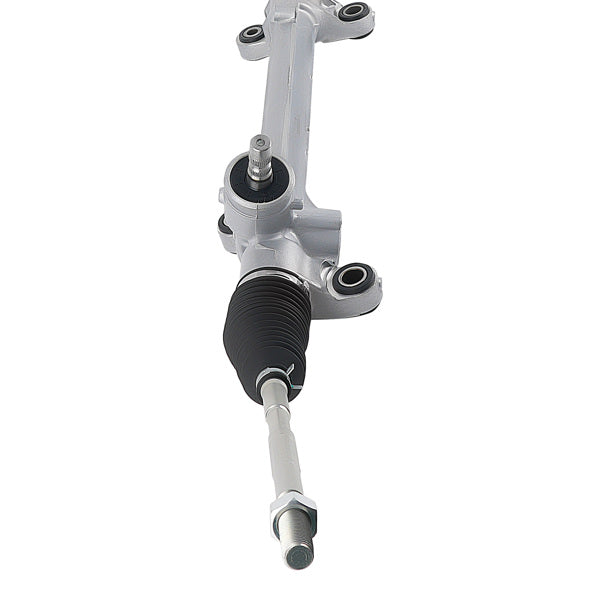

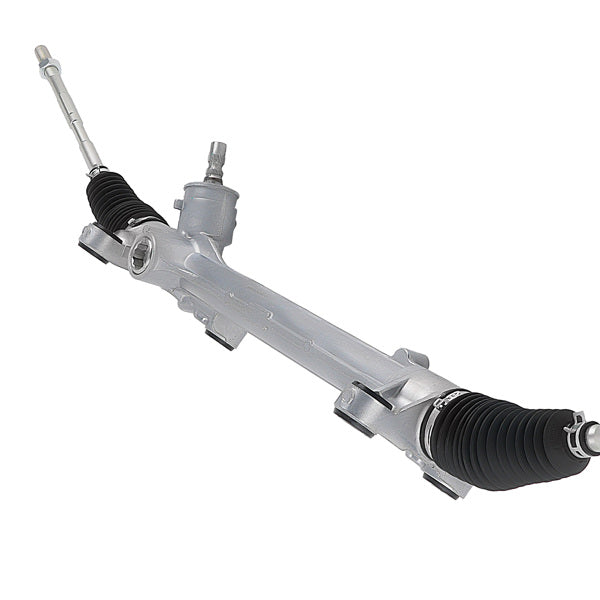

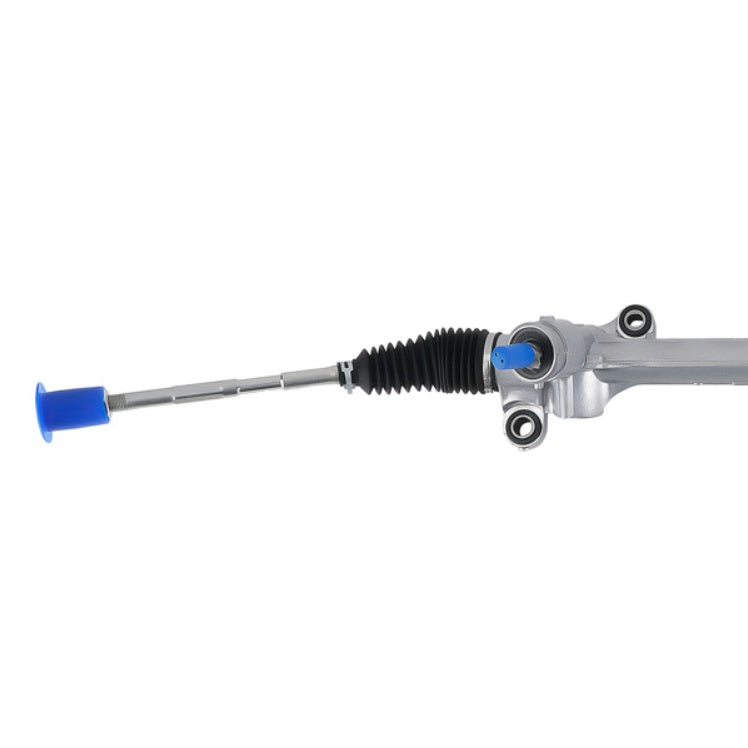

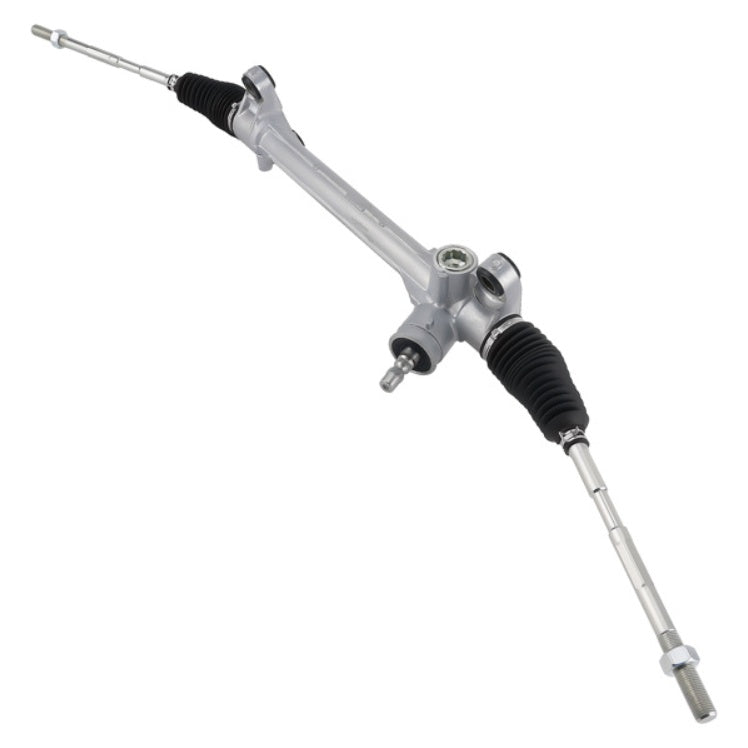

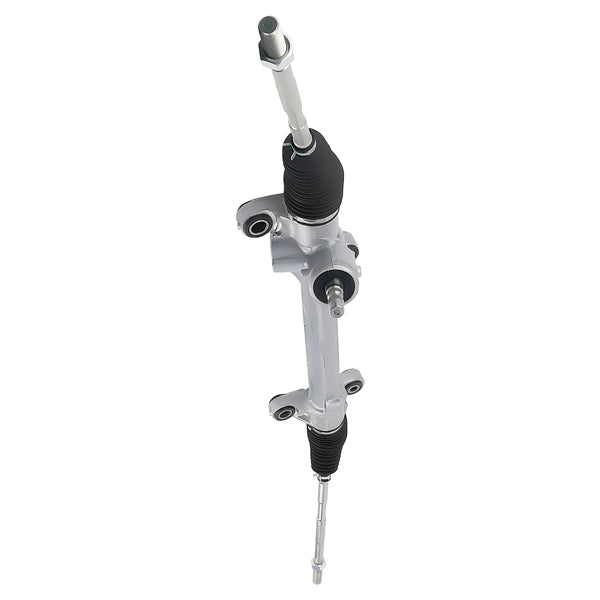

| 2014-2019 Corolla steering rack | Complete power rack and pinion, LHD | Leaking, noisy or worn rack | Rack assembly with both inner tie rods; outer ends not included | Toyota Corolla 2014-2019, L4 1.8L |

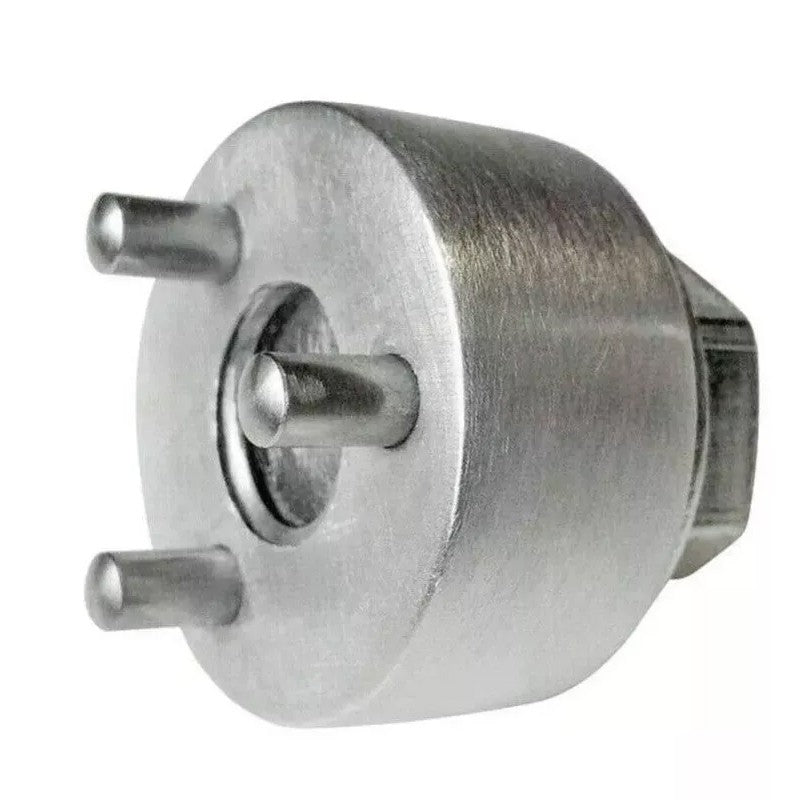

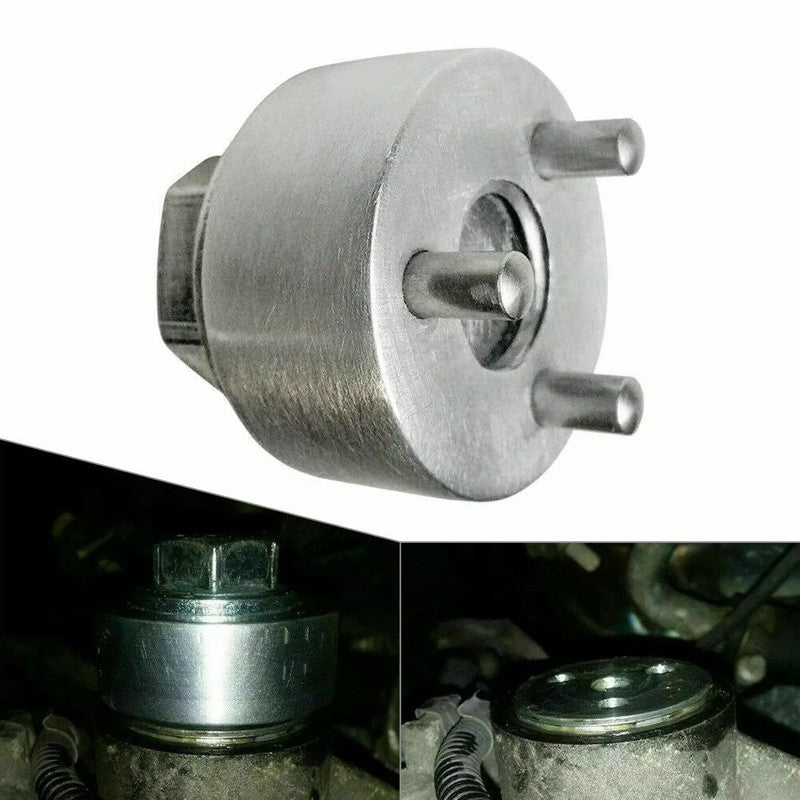

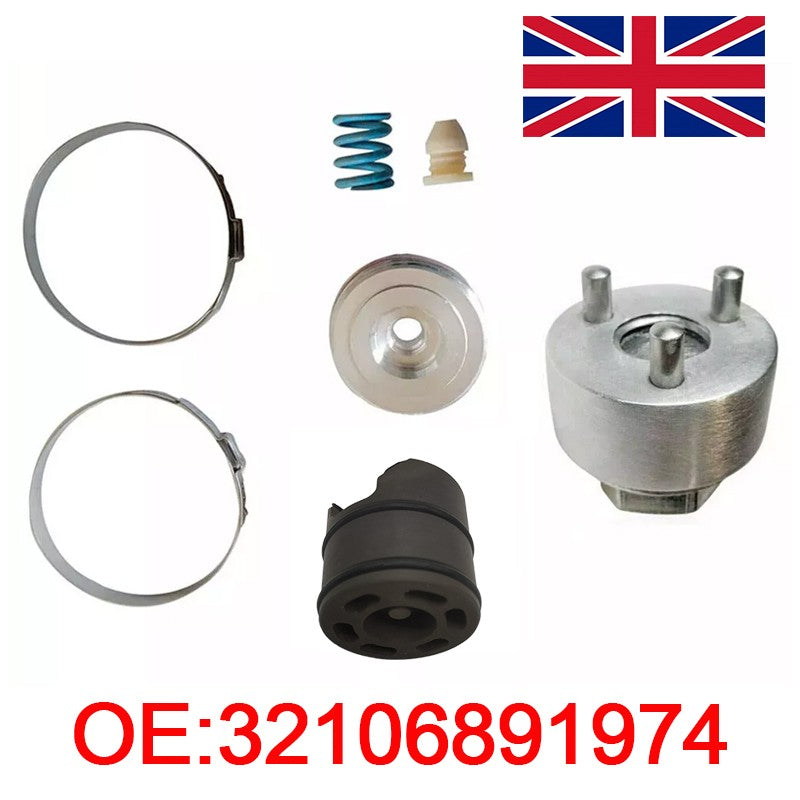

| BMW rack repair kit | Thrust piece repair kit | Knock from the rack over bumps | Repair kit and thrust piece tool | BMW 1, 2, 3, 4 Series, X1, X3 and X4 F-series models listed on the page |
Always read the full product page for reference numbers and exclusions before you order.
Signs of a Worn Steering Rack
A rack problem can feel like other front-end faults, so it pays to know the typical signs:
- Knocking from the centre of the car over bumps or rough roads. On some BMW models this is a known thrust piece issue.
- Free play in the steering wheel before the car responds.
- Heavy or uneven steering, where it feels harder to turn one way than the other.
- Fluid leaks around the boots or housing on hydraulic systems. A wet boot often means a failed inner seal.
- Low power steering fluid that keeps dropping with no visible leak at the pump or hoses.
- Grinding or clicking while turning, which can point to worn gear teeth or bushes.
- Steering that does not return to centre smoothly after a turn.
- A warning light on cars with electric assistance.
Worn inner and outer tie rod ends, ball joints and arm bushings can cause similar symptoms. A mechanic will usually check those first, because they are cheaper to fix. With the car on the ground and the engine off, someone rocks the steering wheel while another person watches the rack. Movement of the rack in its mounts or knocks inside the housing point to the rack itself.
Replace or Repair?
The right choice depends on the fault and the type of rack.
- Knock only, no leaks, known thrust piece issue: a repair kit is often enough, and the rack stays in the car on some models.
- Fluid leaking from the seals: on most cars the practical fix is a complete rack, because internal seals need specialist tools and parts.
- Worn gear teeth or damaged housing: a complete rack is the only real fix.
- Electric assistance fault: diagnose the motor and electronics first. A complete assembly may be needed.
- Worn inner rods only: replace the rods and boots, not the rack.
A complete rack like our Corolla unit comes with new inner rods, so you renew the most-worn steering joints at the same time.
Rack Mounts, Boots and Seals
The rack is held to the subframe or bulkhead by two or more mounts. Many use rubber bushes, and some use a clamp on one side with a fixed bracket on the other. When those bushes wear, the whole rack shifts slightly each time you turn the wheel. The car feels vague and may knock as the rack hits its mounting brackets. New mounting bushes are cheap compared with a rack, so check them before deciding the rack itself has failed.
The bellows boots at each end are just as important. They are folded rubber covers held on with clips or ties. They protect the polished rack bar and the inner joints from water and grit. A torn boot does not cause symptoms straight away, but it lets dirt reach the seals. On a hydraulic rack that leads to leaks. On any rack it leads to wear in the inner joints. Replacing a split boot early is one of the cheapest ways to protect steering racks of every type.
Seals sit inside the housing on hydraulic units. They keep fluid on the correct side of the piston and stop it escaping past the rack bar. When they wear, fluid collects in the boots, the steering can feel heavier in one direction, and the fluid level drops. Seal repairs need specialist tools, which is why a complete rack is the usual repair.
Other Hydraulic Parts to Check
On hydraulic systems, the rack is one part of a loop. Before fitting a new rack, a good mechanic looks at the rest of it:
- The pump. A whining or groaning pump may be worn, and a weak pump can make a good rack feel heavy.
- Pressure and return hoses. Old hoses can leak at the crimps or break down inside, sending debris into the new rack.
- The fluid. Dark or contaminated fluid should be flushed. Fitting a new rack into a system full of old fluid shortens its life.
- The drive belt. A slipping belt reduces assistance and can squeal on full lock. Our belts and hoses section is a good place to start.
Electric systems have no fluid loop, but their wiring, connectors and battery voltage all affect how the assistance works. A weak battery can cause intermittent steering warnings on some cars.
How to Choose the Right Steering Rack
Steering racks are very specific to the vehicle. Length, mounting points, port fittings and the pinion spline all vary. Use this checklist:
- Vehicle details. Make, model, year, engine and drive type.
- Drive side. Left-hand-drive and right-hand-drive cars use different racks. Our Corolla rack is for left-hand drive.
- Assistance type. Manual, hydraulic or electric.
- Reference number. Compare the number on the old rack or in your parts catalogue with our listing.
- What is included. Check whether inner rods, outer ends, boots, mounting bushes or fittings come with the rack.
- Repair or replace. Confirm the fault before buying a full assembly.
Not sure? Send us your vehicle details and the old part number through our contact page.
Steering Ratio and Feel
Every rack has a ratio: how far the wheels turn for each turn of the steering wheel. A quick ratio needs fewer turns from lock to lock and feels sharp. A slower ratio needs more turns and feels calmer on the motorway. Some cars use a variable ratio, where the teeth are cut so the steering quickens as you turn further.
A replacement rack should match the original ratio for your vehicle. Fitting a rack from a different model, even one that bolts in, can change how the car responds and may upset the electronic stability systems on newer cars. That is another reason to order by reference number and not by appearance alone.
If your new rack feels different from the old one, have the alignment checked first. Wrong toe or caster changes steering feel far more than most people expect.
Fitting Steering Racks Safely
The rack is a safety-critical part. A loose mount, a wrong connection or a missed fastener can cause loss of steering. We strongly recommend professional fitting by a qualified mechanic.
If you are experienced and choose to do the work yourself:
- Support the vehicle on axle stands on level ground.
- Centre the steering wheel and lock it before you disconnect the column, so the airbag clock spring is not damaged.
- Mark the column joint to the pinion so it goes back in the same position.
- Count the turns when removing the outer tie rod ends, to get close to the old toe setting.
- Use the vehicle maker's tightening values and procedures. We do not publish torque figures here.
- On hydraulic systems, fill and bleed the fluid as the service information describes. Use the fluid type the vehicle maker specifies.
- On electric racks, carry out any calibration the vehicle requires.
- Have a full wheel alignment straight after fitting.
General workshop tools are in our tools and equipment section. If the car shows a steering warning, our diagnostic equipment page has scan tools.
Care and Maintenance
A rack can last a long time with a few simple habits:
- Check the boots at every service. A split boot lets in grit that wears the rack and inner rods.
- On hydraulic systems, keep the fluid at the right level and look for leaks at the hoses and rack.
- Do not hold the steering at full lock for long periods. It puts the hydraulic system under maximum pressure.
- Avoid hitting kerbs with the front wheels. A hard impact can bend inner rods or damage the rack.
- Fix worn outer joints promptly. Loose outer parts send shocks into the rack.
Who These Parts Suit
- Corolla owners with a leaking or worn rack who want a complete unit with new inner rods.
- BMW F-series owners with a knocking rack who want to try a repair before buying a full assembly.
- Independent workshops that fit these common jobs regularly.
- Experienced home mechanics who have the tools, lift access and service information.
Our range of steering racks will grow. If your car is not listed yet, check back or ask us.
Related Steering and Suspension Parts
When the rack comes out, the parts around it are easy to reach. Consider these at the same time:
- Inner and outer tie rod ends, including kits for the Camry, Rogue and Maxima.
- Front suspension arms, which often need doing on high-mileage cars.
- Arms and kits with ball joints, for knocks that come from the outer corners.
- Suspension bushing sets, for clunks from the arm mounts.
For example, our Camry 14-piece kit includes rack boots and both tie rod ends, and the Nissan Rogue 10-piece kit includes two rack and pinion boots. See the full suspension and steering range or every part in our auto parts catalogue.
Buying Tips from Easy Life Markets
- Find the reference number on the old rack housing before ordering. It is often on a label or stamped into the metal.
- Confirm the drive side. This is the most common ordering mistake with steering racks.
- Check what your old rack has fitted, such as inner rods, mounts or sensors, and compare with the listing.
- Budget for an alignment and, on hydraulic systems, fresh fluid.
- Keep the old rack until the new one is fitted and working, in case you need to compare fittings.
Our return and refund policy explains the process if a part does not suit your car. For shipping details see our shipping policy, and for store questions visit our FAQ page.
Frequently Asked Questions
How long do steering racks last?
Many last a long time. Boot condition, fluid care, road conditions and kerb strikes make the biggest difference. There is no fixed replacement interval.
Can I drive with a leaking steering rack?
A small leak may not stop the car right away, but it gets worse. Low fluid can damage the pump and cause sudden heavy steering. Have it checked soon.
Does the Corolla rack come with the inner tie rod ends?
Yes, both inner rods are fitted. Outer tie rod ends are not included.

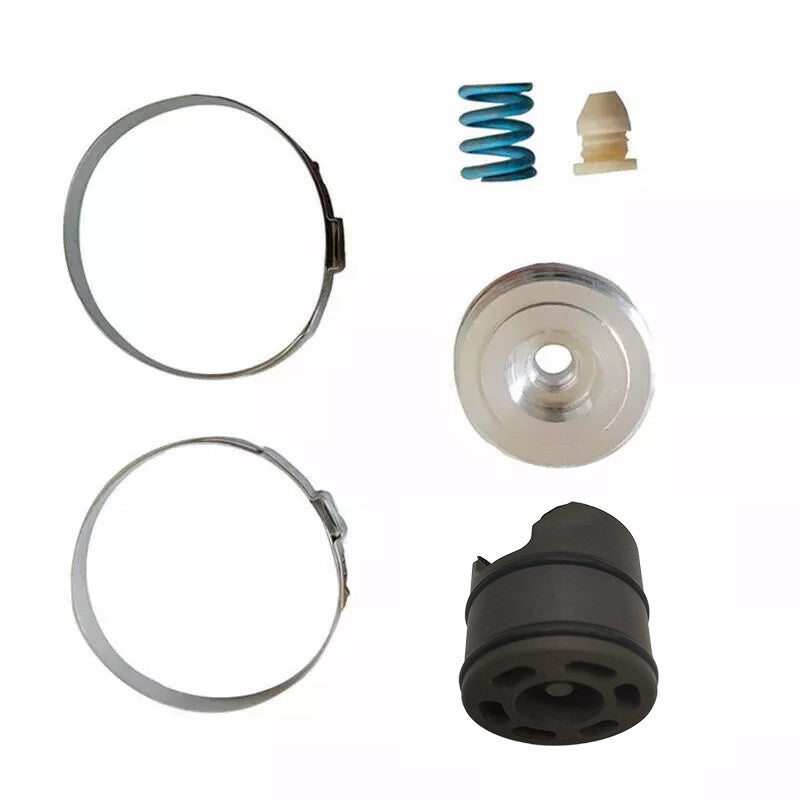

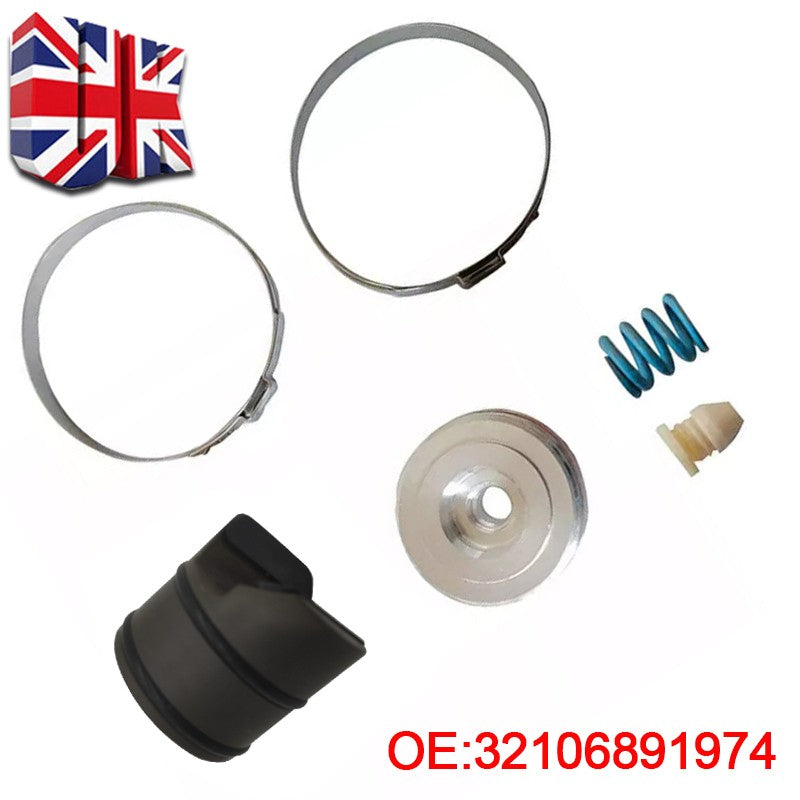

What does the BMW rack repair kit fix?
It replaces the thrust piece that holds the rack against the pinion. That is a common cause of knocking from the rack on the listed F-series models.
Do I need an alignment after replacing a rack?
Yes. Removing and refitting the tie rod ends changes the toe angle. An alignment protects your tyres and keeps the car straight.
Are left-hand-drive and right-hand-drive racks the same?
No. They are built for different sides of the car and are not interchangeable. Check the drive side on the product page.
Should I repair or replace my rack?
If the fault is a known thrust piece knock, a repair kit may be enough. Leaks, worn teeth or a damaged housing usually call for a complete rack.
