Ball Joints

Ball Joints for Front Suspension Repairs

Ball joints are the pivots that connect the suspension arms to the steering knuckle, and Easy Life Markets sells them already fitted in complete arm assemblies, in front-end kits and as adjustable joints for lowered cars. If you hear a knock from the front over bumps, feel the steering wander or see a split rubber boot at the outer end of an arm, a worn joint is a likely cause.

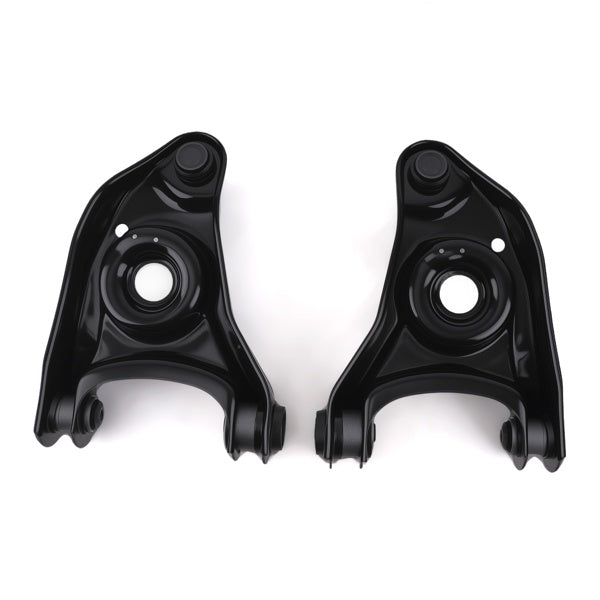

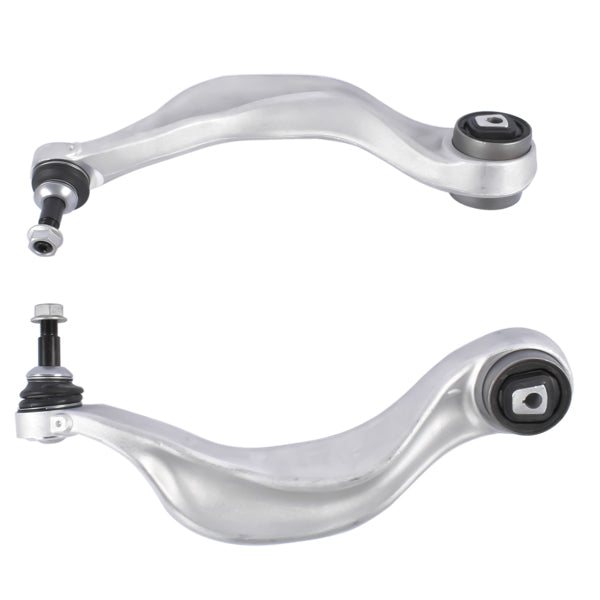

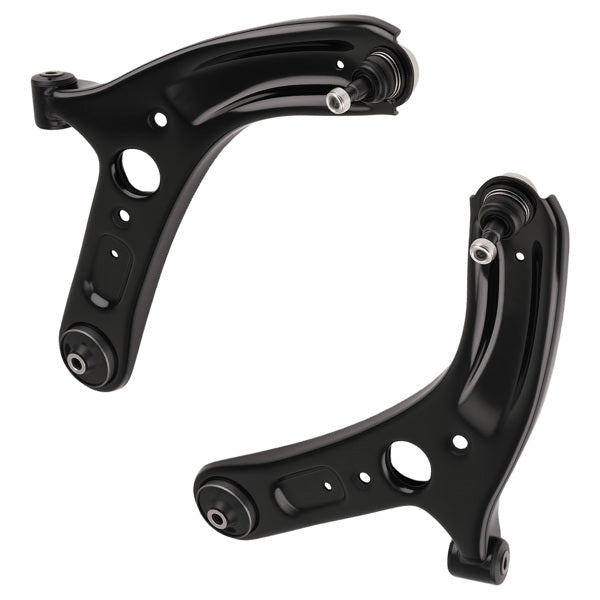

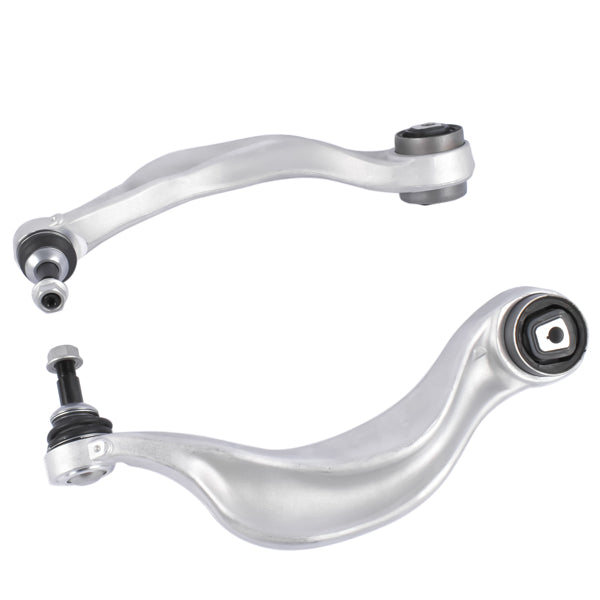

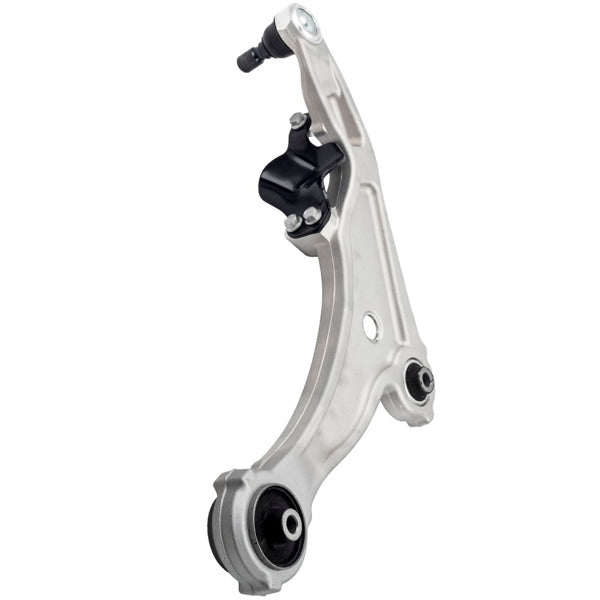

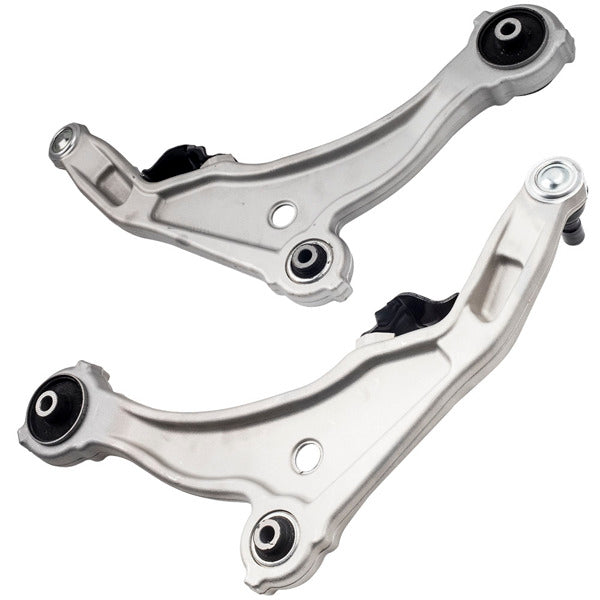

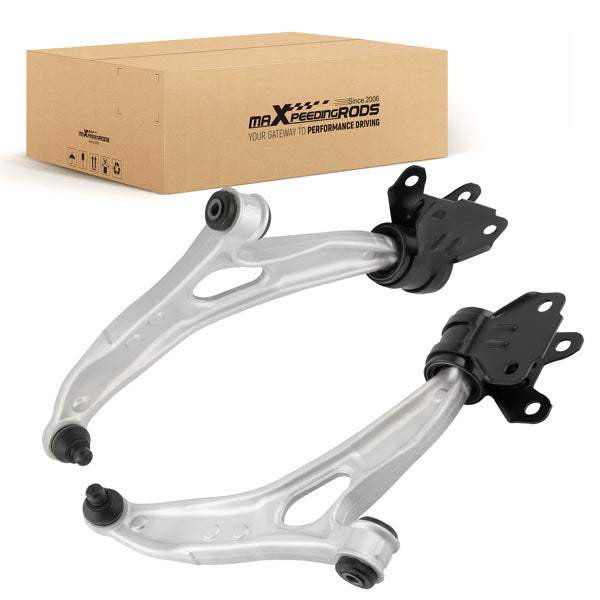

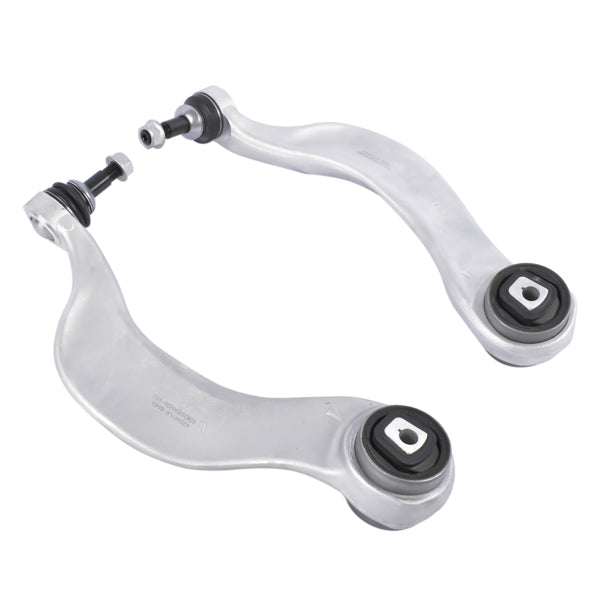

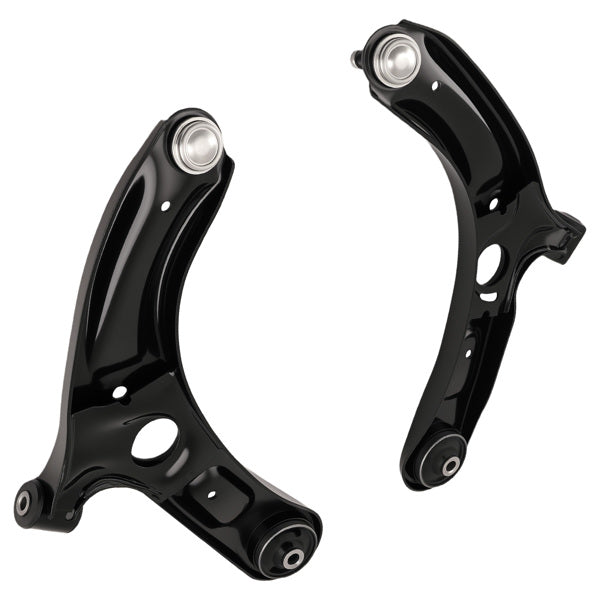

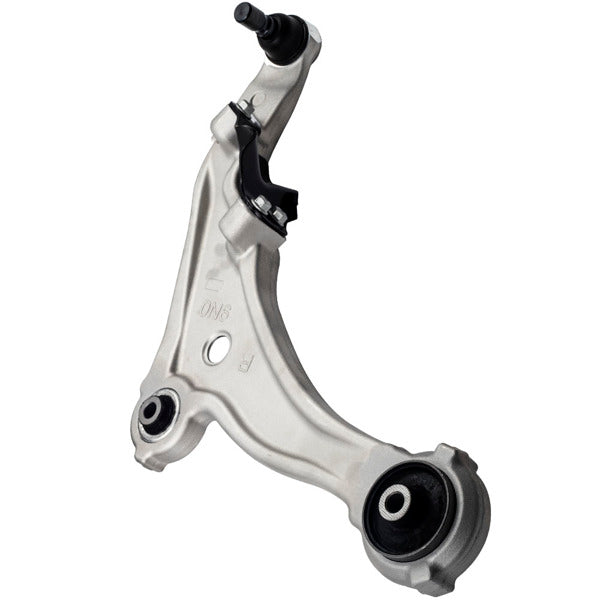

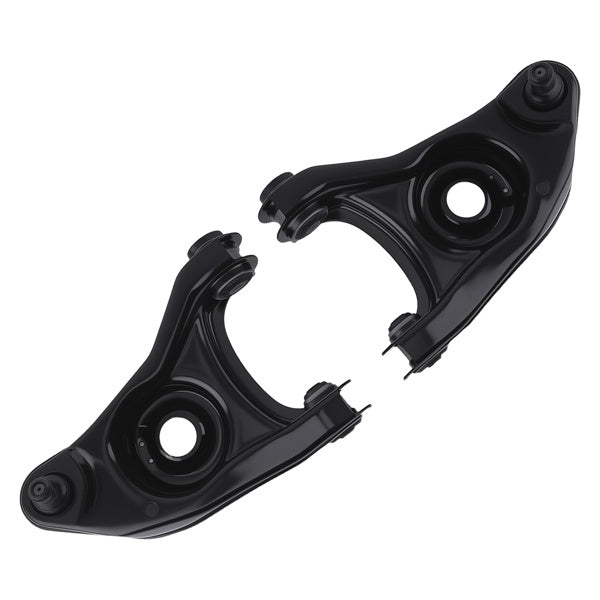

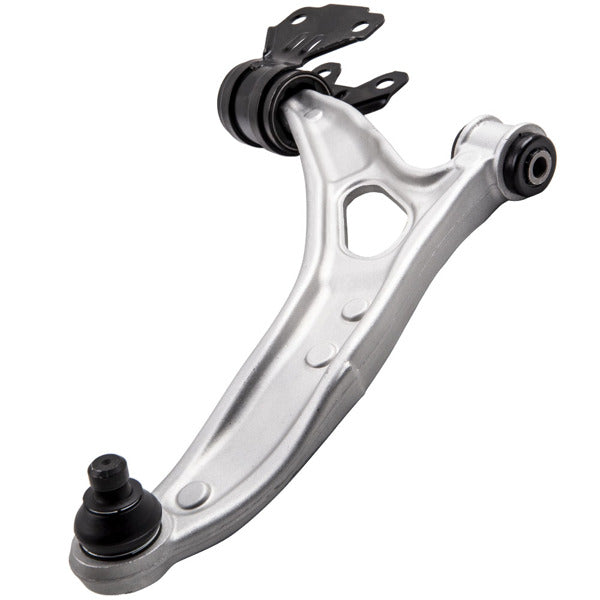

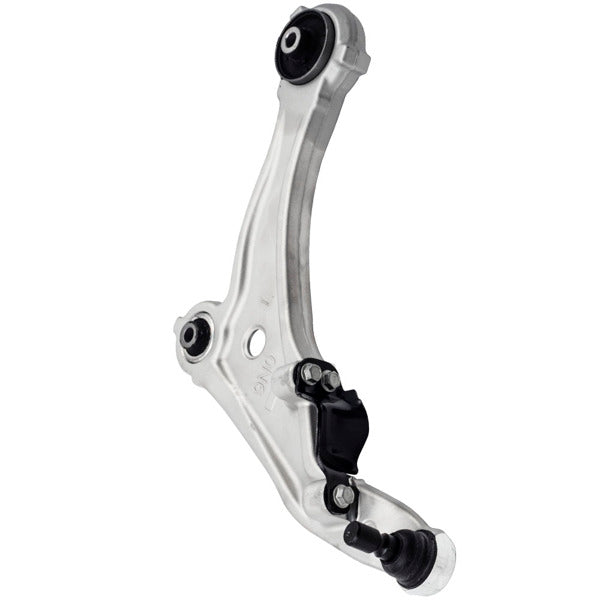

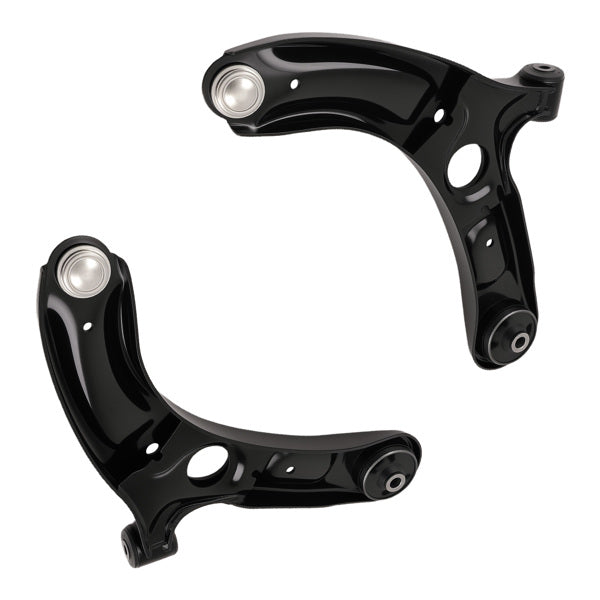

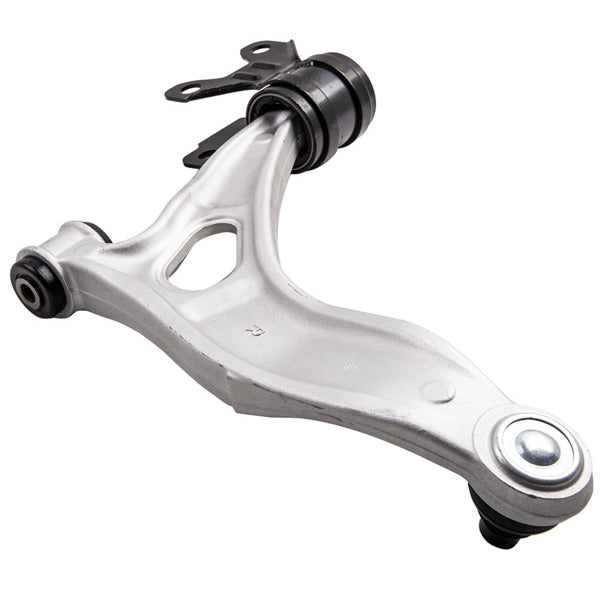

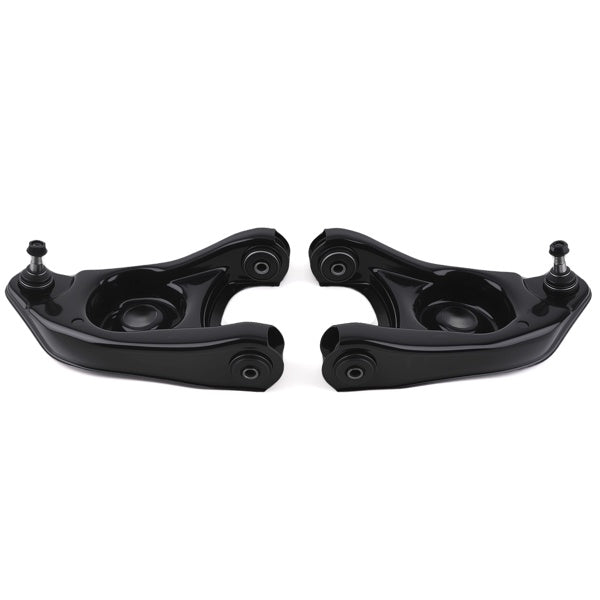

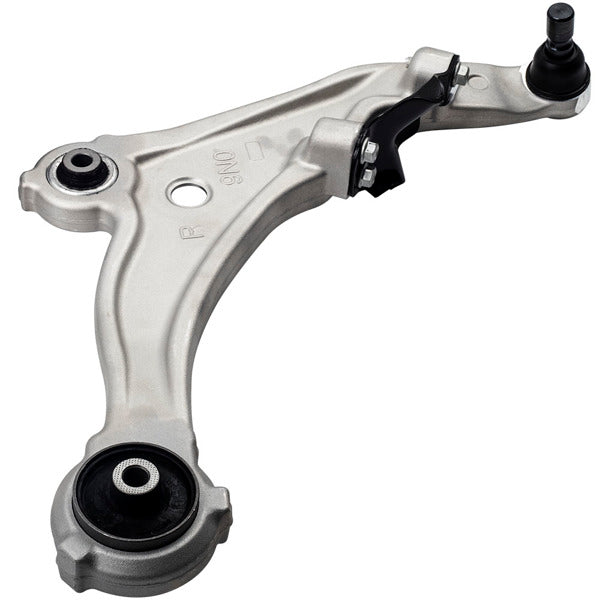

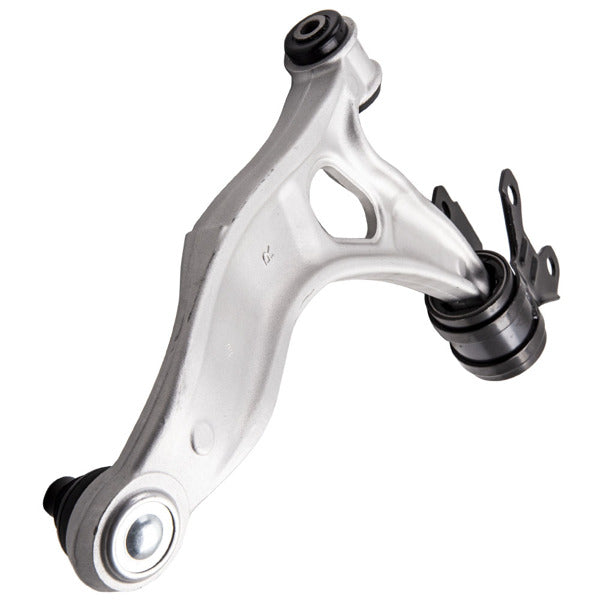

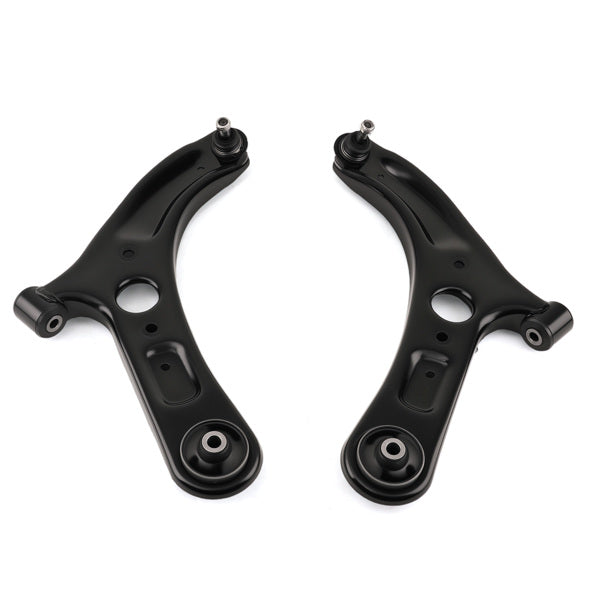

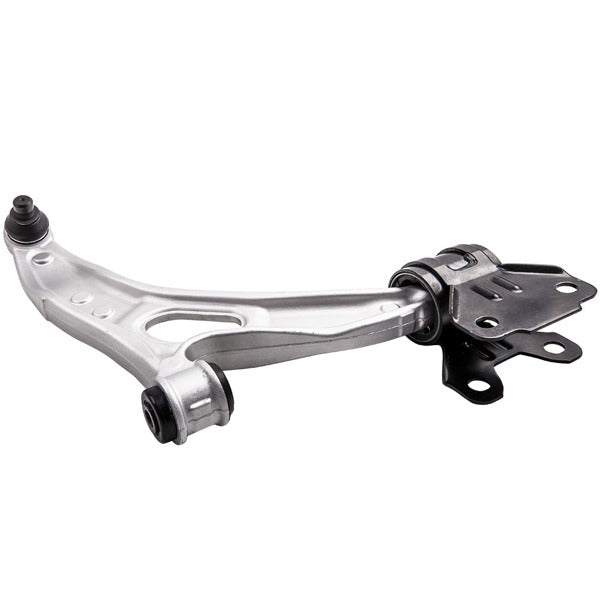

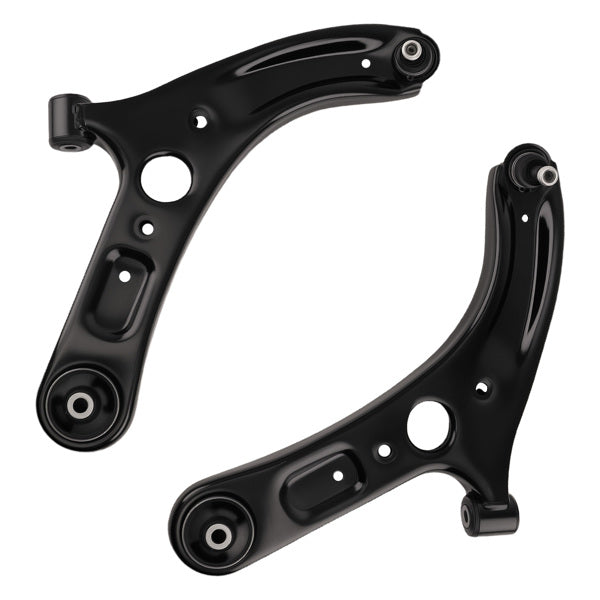

Our current range includes front lower arm pairs with the joint already fitted for Nissan, Kia, Ford, BMW and Mustang models, adjustable upper arms with joints for the Honda CR-V, a four-arm Silverado set, multi-piece kits for the Camry and Maxima, and adjustable front lower ball joints in the Accord camber kit. Each listing gives the vehicle, year range, position and reference numbers. The current price and availability are shown on each product page.

What a Ball Joint Does

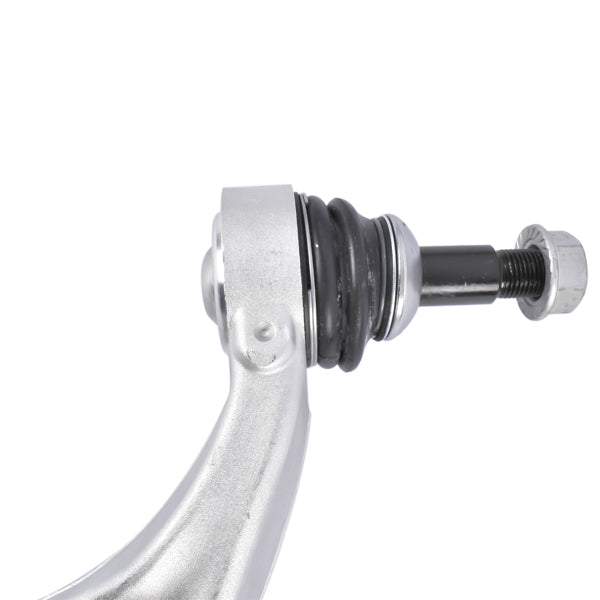

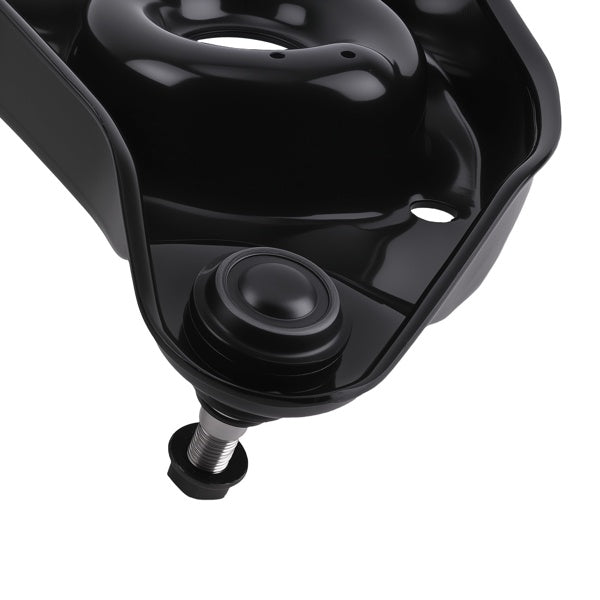

A ball joint works like the hip joint in your body. A steel ball on a tapered stud sits inside a socket. The socket is fixed to the arm, and the stud bolts into the steering knuckle. The ball can rotate and tilt, so the wheel can steer left and right while the suspension moves up and down.

That small part carries a lot. On many cars the lower joint takes part of the vehicle's weight as well as every braking and cornering force at that corner. A plastic or metal bearing inside the socket keeps the ball moving smoothly, and a rubber boot holds grease in and keeps dirt out.

Over time the bearing surfaces wear. Once the ball has room to move inside the socket, the wheel can shift slightly on its own. You hear it as a knock and feel it as loose, vague steering. If the wear goes too far, the stud can pull out of the socket. When that happens the wheel can fold under the car, which is why worn ball joints should never be ignored.

Types of Ball Joints

Suspension designs differ, and so do the joints that go with them. Here are the main kinds you will see.

Lower ball joints

Every car with front arms has a lower joint at each front corner. On MacPherson strut cars it is the only joint at the bottom of the knuckle. It works hard and is the one most often replaced. Most of our current range is built around this position.

Upper ball joints

Double wishbone and short-long arm suspensions have a second joint at the top of the knuckle. Trucks, many SUVs and some older cars use this layout. The upper joint usually carries less load, but it still controls camber and caster.

Load-carrying and follower joints

On a double wishbone setup, one joint carries the weight of the vehicle and the other simply guides the knuckle. Which one carries the load depends on where the spring sits. The load-carrying joint usually wears first.

Press-in, bolt-in and integrated joints

Some joints are pressed into the arm with a special tool. Some bolt on with three or four small bolts. Many modern cars use joints that are riveted or cast into the arm, so the whole arm is replaced as one unit. That is why most of what we sell are complete arm and joint assemblies: they suit the way modern cars are built and remove the need for pressing.

Adjustable ball joints

An adjustable joint has an offset or slotted base that lets you move the knuckle slightly to correct camber. These are popular on lowered cars where the factory geometry has run out of adjustment. The 2008-2013 Accord camber kit includes a pair of adjustable front lower joints with rear camber and toe arms.

Ball Joints in Our Current Range

Here are the products that include a joint today. Read each product page for the full contents, the vehicle list and any exclusions.

Signs of Worn Ball Joints

Joints usually wear slowly, so the signs build up over weeks or months. Watch for:

• Clunking or knocking from the front over bumps, potholes or speed humps.
• Squeaking or creaking when turning at low speed, often from a dry joint whose boot has split.
• Loose or wandering steering that needs constant correction.
• Uneven tyre wear, especially on the inner or outer edge of one front tyre.
• Vibration through the steering wheel or floor.
• A torn or missing boot, which means water and grit are getting into the socket.

A mechanic checks for wear with the wheel off the ground. On many vehicles the joint should be unloaded first, which depends on where the spring sits. They then lever the knuckle up and down and look for movement at the stud. Any play beyond what the vehicle maker allows means the joint should be replaced.

What Makes Ball Joints Wear Faster

Every joint wears in the end, but some conditions speed it up a lot. Knowing them helps you judge how often to check yours.

• Broken boots. This is the biggest single cause. Once the rubber splits, grease escapes and abrasive grit gets in. A joint with a torn boot can go from tight to loose in a few months.
• Rough roads and potholes. Sharp impacts hammer the ball against its socket. Cars driven daily on broken surfaces need checks more often.
• Heavy loads. Towing, carrying full loads or fitting heavy accessories adds weight to the load-carrying joints.
• Bigger wheels and tyres. Larger, heavier wheels and wide tyres increase the leverage on the joint, especially on lifted trucks.
• Ride height changes. Lifting or lowering a vehicle makes the joint work at a steeper angle than designed. That is one reason lift arms and adjustable joints exist.
• Water and salt. Corrosion attacks the stud and the socket housing, and it makes old joints very hard to remove.

If your vehicle sees several of these, inspect the front end at every service rather than waiting for noise.

Sealed or Greaseable Joints

Many factory joints are sealed for life. They are packed with grease at assembly and have no way to add more. Some replacement and heavy-duty joints have a grease nipple so they can be topped up. Both designs work well when the boot is intact.

A greaseable joint suits owners who already service their vehicle regularly and like to keep fresh grease moving through the socket. A sealed joint suits owners who want a fit-and-forget part. Each product page shows what the supplier lists, and the product photos show if a nipple is present. If the page does not say, ask us before you buy.

Whatever the design, the boot is what keeps the joint alive. Treat a split boot as a reason to plan a replacement, not as a cosmetic problem.

How to Choose the Right Replacement

Ball joints look similar from car to car, but stud taper, thread size, height and mounting style all vary. Follow these steps before you order:

1. Identify your vehicle fully. Make, model, year, engine, drive type and any suspension package.
2. Find the position. Upper or lower, left or right, front or forward link.
3. Check how the joint is fitted. If it is riveted or built into the arm, buy a complete arm. If it presses or bolts in, a separate joint may be possible.

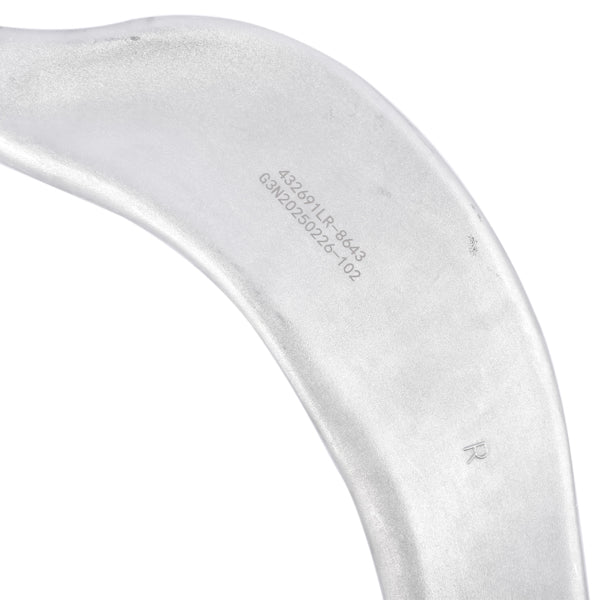

4. Compare reference numbers from the old part or your parts catalogue with our listing.
5. Read the exclusions carefully. The Silverado set, for example, only suits trucks built with cast iron lower arms.
6. Think about ride height. A lowered or lifted vehicle may need adjustable joints or arms to bring the alignment back into range.

If anything is unclear, send us your vehicle details through the contact page before you buy.

Complete Arm or Joint Only?

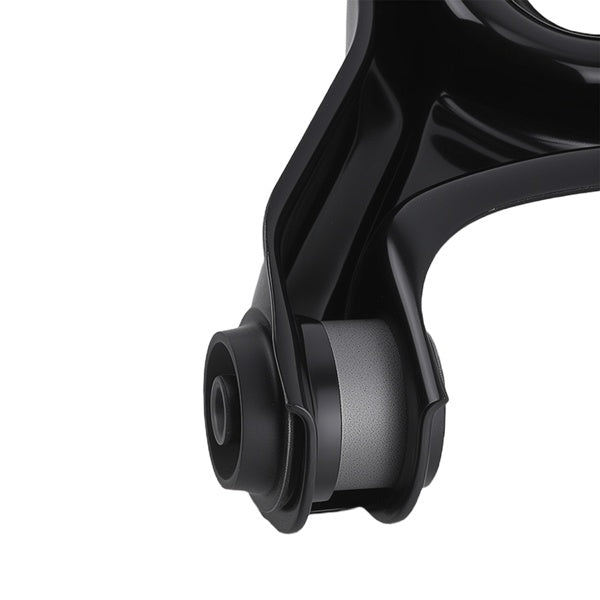

Replacing only the joint is cheaper in parts. It also takes a press, a receiver cup set and time, and an old arm may have tired bushings that will need doing soon anyway. On a rusty car, the old joint can be very hard to remove.

A complete arm with a new joint and new bushings replaces every wearing part at that corner in one job. For most daily drivers that is the simpler and more reliable repair. That is why our current range is built mainly around complete assemblies and kits. If your old arm is in good condition and only the bushings are the problem, our bushing collection has replacement sets.

Fitting Ball Joints Safely

Ball joints are safety-critical. A failed joint can cause loss of steering control. We recommend professional fitting by a qualified mechanic. If you have the experience to do the work yourself:

• Support the vehicle on axle stands on firm, level ground. Never work under a car held only by a jack.
• Take care with springs. On some designs the arm holds back spring pressure. Follow the service information for safe removal.
• Use a proper separator tool to break the taper. Do not heat or hammer the knuckle unless the service information allows it.
• Clean the taper in the knuckle so the new stud seats properly.
• Fit new nuts and cotter pins as specified, and use the vehicle maker's tightening values. We do not list torque figures here.
• Tighten arm bushing bolts at normal ride height.
• Have a full wheel alignment done after fitting.

General workshop tools are in our tools and equipment section.

Care and Inspection

New joints last longer with a little attention:

• Check the boots at every service. A split boot is the start of most failures.
• If your joint has a grease nipple, grease it at the interval in your service schedule. Stop when the boot just begins to swell.
• Rinse mud and salt from the underside when you can.
• Avoid hard kerb strikes and deep potholes at speed.
• Listen for new knocks. Catching a problem early saves the arm and the tyres.

Replace Both Sides Together

Most of our front assemblies come as left and right pairs. Both sides have covered the same miles on the same roads. If one side has worn out, the other is usually close. Replacing both keeps the steering feel even and means the alignment is set once on fresh parts.

Who These Parts Suit

• Daily drivers with a knocking front end on a supported Nissan, Kia, Ford, BMW or Mustang.
• Truck owners who want to renew all four front arms and joints at once.
• Owners of older Camry and Maxima models who want a full front-end kit.
• Lowered Accord and Acura owners who need adjustable front joints to correct camber.
• Workshops sourcing complete assemblies by reference number.

We will add more vehicles to this collection over time.

Related Parts to Check

Front-end parts wear together. While the car is on the lift, look at these:

• Front and rear suspension arms, including adjustable and lift arms.
• Tie rod ends and steering links, which share the same knuckle.
• Struts and shock absorbers, which affect how hard the joints work.
• Rack and pinion assemblies, if the steering also leaks or knocks.

Browse the whole suspension and steering category or our full auto parts catalogue. If the brakes need attention while the wheels are off, see our brake parts.

Buying Tips from Easy Life Markets

• Photograph the old part and note any reference number before ordering.
• Check if your car has had aftermarket arms fitted before. They may not match the factory number.
• Read the box contents on each product page so you know what hardware is included.
• Book an alignment for the same day as the fitting.

Our return and refund policy explains what to do if a part does not suit your car. See the shipping policy page for shipping information and our FAQ page for general store questions.

Frequently Asked Questions

How long do ball joints last?

There is no single figure. Road conditions, load and boot condition matter most. Many last a long time, while others wear quickly on rough roads or once a boot splits.

Is it safe to drive with a worn ball joint?

No. A badly worn joint can separate and the wheel can collapse under the car. Have it checked as soon as you notice knocking or loose steering.

Can I replace just the ball joint instead of the whole arm?

On some vehicles, yes, if the joint is pressed or bolted in. Many modern cars have the joint built into the arm, so the complete arm must be replaced.

Should I replace ball joints in pairs?

We recommend it. Both sides wear at a similar rate, and a matched pair keeps handling even and needs only one alignment.

Do I need an alignment after replacing a ball joint?

Yes. A new joint or arm changes the wheel angles slightly, and an alignment protects your tyres and keeps the car tracking straight.

What are adjustable ball joints for?

They let you correct camber on a lowered car where the standard parts cannot. The Accord camber kit includes a pair for the front lower position.

How do I know which joint fits my vehicle?

Match the make, model, year, position and reference number to our listing and read the exclusions. Contact us if you are unsure.
